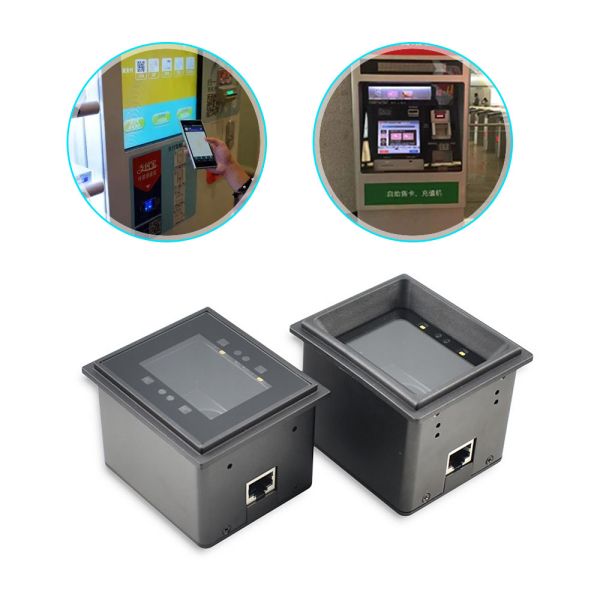

2D Turnstile Barcode Reader Wiegand QR Code Barcode Scanner Reader Module
RD4500R barcode scanner description:
RD4500R 1d 2d QR fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons,
mobile marketing, mobile payment, kiosk, turnstile, and office automation, the series fixed mount barcode scanner
is able to read barcodes on paper and mobile phones. RD4500R can support USB port, play and plug easily, and
support RS232 port with 5V power adapter. We have many successful cases already in the whole world. And we sell RD4500 series barcode scanner at leat 10Kpcs each year. In China, Beijing Metro used our scanner also for phone screen payment and fast pass.
RD4500R Phone screen reader main features:
1: Windows design almost same with phone size, so easy to scan phone screen barcode,
2: Support multiple interface: USB or RS232, even can use USB or RS232 to Wiegand converter to output wiegand, many application in turnstlie.
3: Easy to integrate and install: Don't need any SDK, can fast fix into the kiosk, vending machine or turnstile for mobile payment
4: Suitable for dark environment: With 4 LED lights, so no matter day or night, can fast scan the barcode.
5: Quality is very good: Almost no need to return for repair, and can use long time.
6: Support sense mode, trigger mode and continuous mode: some engineer can command control the scanner working or stopping.
RD4500R QR Datamatrix Scanner Parameters:
| Interface | RS232/ USB | | Image Sensor | 752 x 480CMOS | | Symbologies | 2D: PDF417, Data Matrix, QR Code 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
Codabar, Code 128, Code 93, ITF-6, ITF-14,
Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
Matrix 2 of 5, GS1 Databar (RSS-Expand,
RSS-Limited, RSS-14), Code 39, Code 11,
MSI-Plessey, Plessey | | Precision | 10 mil | | Light Source | White LED | | Scan Window | 38.3mm*60.4mm | | Depth of Field* | 40mm-430mm | | Print Contrast Signal | ≥ 30% | | Illumination | 0 ~ 100,000 LUX | | Power Consumption | 1.75W (max) | | Power Adaptor | Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz | | Weight | 300g | | Dimensions | 82 mm(L) X 72mm (W) X 52mm(H) | | Notification | Beep | | Certification | FCC Part15 Class B, CE EMC Class B | |
Advantage Of Barcode Scanner Module
1. Support 2D/1D barcode and support screen and paper barcode
2. 1GHz 32 bits CPU,high speed for data processing.
3. Temperature resistance can reach 105℃,long service life.
4. Small size, powerful and easy to integrate in industrial equipment.
5. It supports 2nd development,multiple development language,also SDK.
6. Highly cost-effective,highly sales volume.
7. We can offer the FFC flat cable for free and 12pin connector if cl
Company Advantages:
Our company is specialized in barcode scanner for 20 years since 2000, we have professional research
developement team, has our own factory, support OEM design. We have many customers from different
countries already. And we are Gold supplier in the Alibaba. Our product is certificated by CE,ROHS and FCC.
FAQ:
Q1: Can I get some samples? Are they free?
A1: We support 1-2pcs sample order. Samples should be paid.
Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us directly
according to the contact info. We will send you proper link directly.
Q3: What is your payment method?
A3: We accept Alibaba online orders by Credit card, PayPal ,T /T
Q4: How long is your warranty time?
A4: Our officially promised warranty time is 1 year after delivery.
Q5: Where can we download the user manual of the scanners?
A5: We will send by email after you get samples.
Q6: What's the lead time?
A6: For sample, it is typically within 5-7days by DHL. For bulk order, it depends on quantity and model you order.
Q7: Can you provide OEM service?
A7: Yes. We need further discuss about details.
